Western Blot
Positive WB detected in: HT-29 whole cell lysate(20µg), HEK293 whole cell lysate(20µg), MCF-7 whole cell lysate(20µg), K562 whole cell lysate(20µg), U-251MG whole cell lysate(20µg), HepG2 whole cell lysate(20µg), Jurkat whole cell lysate(20µg), A549 whole cell lysate(20µg), HeLa whole cell lysate(20µg)
All lanes: PPA1 antibody at 1:1000
Secondary
Goat polyclonal to rabbit IgG at 1/40000 dilution
Predicted band size: 33 kDa
Observed band size: 33 kDa
Exposure time:5s
-

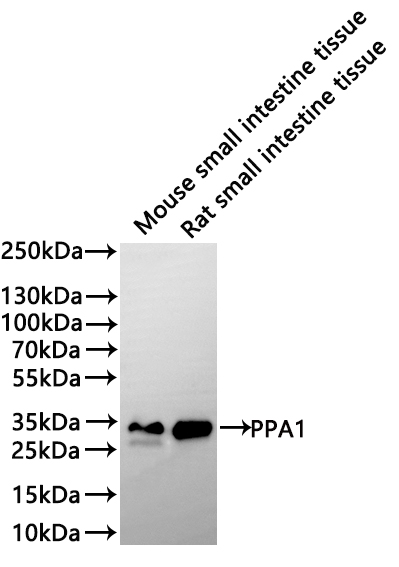

Western Blot
Positive WB detected in: Mouse small intestine tissue lysate(20µg), Rat small intestine tissue lysate(20µg)
All lanes: PPA1 antibody at 1:1000
Secondary
Goat polyclonal to human IgG at 1/40000 dilution
Predicted band size: 32.7 kDa
Observed band size: 33 kDa
Exposure time: 2min
-
Overlay Peak curve showing HEK293 cells stained with CSB-RA614884MA1HU (red line) at 1:100. The cells were fixed in 4% formaldehyde and permeated by 0.2% TritonX-100 for 10min. Then 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (1ug/1*106cells) for 45min at 4℃. The secondary antibody used was Fluorescein (FITC) AffiniPure Goat Anti-Human IgG, Fcγ fragment specific at 1:200 dilution for 35min at 4℃.Control antibody (green line) was human IgG1 (1ug/1*106cells) used under the same conditions. Acquisition of >10,000 events was performed.
|
