Anti-payload Antibodies

Antibody-drug conjugates (ADCs) are a novel class of anticancer drugs that combine monoclonal antibodies with small molecule toxins, offering high target specificity and cytotoxicity. Following ADC administration, the payload can undergo payload release resulting in an increase in unbound payload and changes in ADC components (i.e., DAR distribution). Therefore, quantitative analysis of the conjugated antibody and payload on the antibody in vivo is crucial for assessing ADC efficacy, evaluating payload exposure at the target site, and determining the significance of DAR distribution and changes in average DAR value for providing overall assessment of ADC stability.

CUSABIO introduces specialized tools for preclinical and clinical stage antibody-drug research - anti-Payload antibodies. These antibodies can be utilized for plasma/serum pharmacokinetic analysis of ADC drugs, determination of drug binding affinity, DAR value analysis, and evaluation of ADC drug efficacy.

For more detailed information, please refer to the webinar video replay.

CUSABIO currently offers the following types of anti-Payload antibodies.

Analysis Methods for Various Components of ADCs

Comprehensive bioanalytical methods, including ligand binding assays and liquid chromatography-tandem mass spectrometry (LC-MS/MS), are required for the biological analysis of ADCs, covering both large molecule and small molecule analysis. Anti-Payload antibodies play a crucial role in immunogenicity analysis within ADCs and are employed in bridging immunoassays(Bridging LBA) for immunogenicity analysis.

Analyte Type Description Typical analytical platforms
Total antibody Total antibody (conjugated or unconjugated) LBA, hybrid LC-MS/MS
Total ADC Total conjugated antibody (DAR > 1)OR LBA
Total payload conjugated to antibody (DAR > 1) LBA hybrid LC-MS/MS
Unconjugated payload Payload not conjugated to antibody LC-MS/MS

(Faria et al., 2022. Doi:10.1007/978-3-030-97193-9_3)

Anti payload antibodies for ADC-Anti DXD

DXD-the most promising payload for next-generation ADCs

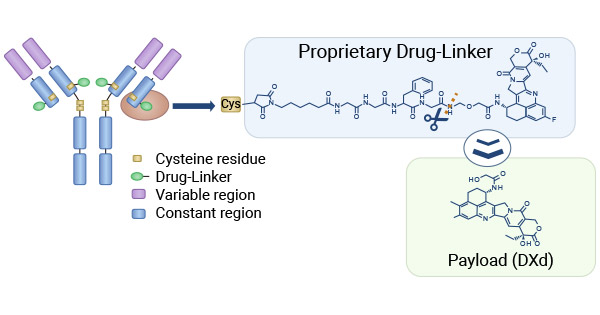

Figure. 1 DXD-the most promising payload for next-generation ADCs [1]

Applications

Pharmacokinetic (PK) analysis

Qualitative analysis of ADC DAR values

Immunogenicity analysis

Preclinical and clinical stage antibody development for drug resistance

Product Advantages

High Purity

Guaranteed above 90% purity verified by SEC-HPLC.

High Specificity

Specificallyrecognizes small molecule toxins.

High Sensitivity

Shows good binding activity verified with approved ADc drugs.

High Affinity

Shows good binding activity verified with approved ADC drugs.

Easy Detection & Cost-Efficient

HRP coniugated anti-DXD mAb available no need with secondary antibody for whole operation.

Tech Team Online

Guaranteed to respond to any questions within 24 hours.

Anti Payload Antibodies

Product Name Code Tested Applications Purification Method
DXD Recombinant Monoclonal Antibody CSB-RA996977I1m ELISA Affinity-chromatography
DXD Recombinant Monoclonal Antibody CSB-RA996977I1h ELISA Affinity-chromatography
DXD Monoclonal Antibody CSB-MA996977I1m ELISA >95%, Protein G purified
DXD Monoclonal Antibody CSB-MA996977I2m ELISA >95%, Protein G purified
DXD Monoclonal Antibody, HRP conjugated CSB-MA996977I1m-B ELISA >95%, Protein G purified
DXD Monoclonal Antibody, HRP conjugated CSB-MA996977I2m-B ELISA >95%, Protein G purified
DM1 Monoclonal Antibody CSB-MA989454I0m ELISA >95%, Protein G purified
DM1&DM4 Monoclonal Antibody CSB-MA989811I0m ELISA >95%, Protein G purified
DM1&DM4 Monoclonal Antibody CSB-MA989811I1m ELISA >95%, Protein G purified
DM1&DM4 Monoclonal Antibody CSB-MA989811I2m ELISA >95%, Protein G purified
DM1&DM4 Monoclonal Antibody CSB-MA989811I3m ELISA >95%, Protein G purified
Eribulin Recombinant Monoclonal Antibody CSB-RA943989I1m ELISA Affinity-chromatography
Eribulin Monoclonal Antibody CSB-MA943989I1m ELISA >95%, Protein G purified
MMAE&MMAF Recombinant Monoclonal Antibody CSB-RA903890I1m ELISA Affinity-chromatography
MMAE&MMAF Monoclonal Antibody CSB-MA903890I1m ELISA >95%, Protein G purified
SN38 Recombinant Monoclonal Antibody CSB-RA187707I1m ELISA Affinity-chromatography
SN38 Monoclonal Antibody CSB-MA187707I1m ELISA >95%, Protein G purified

Supplemental Data

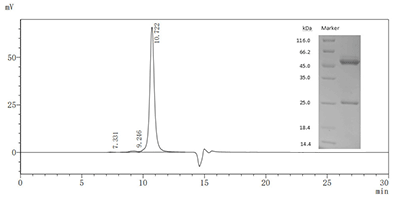

High purity verified by SEC-HPLC and SDS-PAGE with Anti-DXD antibody
(Code: CSB-MA996977I2m)
CSB-MA996977I2m SDS-PAGE

The Mouse Anti-DXD Antibody (Code: CSB-MA996977I2m) has a purity of more than 90% as determined by SEC-HPLC and SDS-PAGE.

High purity verified by SEC-HPLC and SDS-PAGE with Anti-Eribulin Antibody
(Code: CSB-MA943989I1m)
CSB-MA943989I1m SDS-PAGE

The Mouse Anti-DXD Antibody (Code: CSB-MA943989I1m) has a purity of more than 98% as determined by SEC-HPLC and SDS-PAGE.

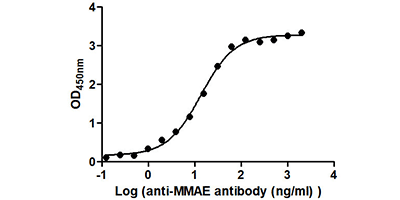

The Binding Activity of Disitamab vedotin (Synonyms: RC48) with Anti-MMAE antibody
(Code: CSB-MA903890I1m)
CSB-MA903890I1m Activity

Activity: Measured by its binding ability in a functional ELISA. Immobilized Disitamab vedotin (Synonyms: RC48) at 2 μg/mL can bind Anti-MMAE antibody, the EC50 is 11.65 to 15.97 ng/mL.

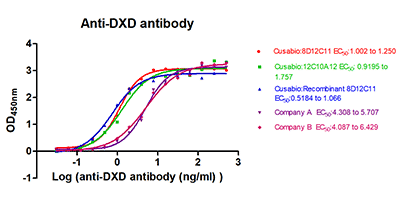

The Binding Activity of T-DXd(DS-8201) with Anti-DXD antibody
(Code: CSB-MA996977I2m)
CSB-MA996977I2m Activity

Activity: Measured by its binding ability in a functional ELISA. Immobilized T-DXd(DS-8201) at 2 μg/mL can bind Anti-DXD antibody, the activity was 4-5 times that of other companies.

Customization Services

CUSABIO has developed a range of high-purity, high-sensitivity, and high-affinity anti-Payload antibodies that can be used for preclinical and clinical stage DAR value and PK analysis of ADC drugs. We offer customized anti-Payload antibody services to meet the personalized needs of our customers.

References

[1] Kumar, Seema, ed. An Introduction to Bioanalysis of Biopharmaceuticals. Vol. 57. Springer Nature, 2022.
