Device

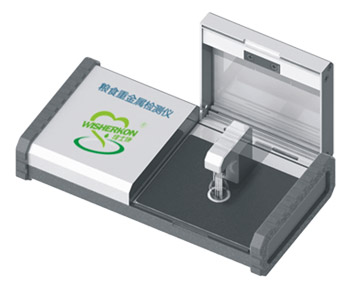

WSK-HMD01 (Single-channel):

Test Mainframe--one set; Tablet PC--one set; Bluetooth Printer--one set.

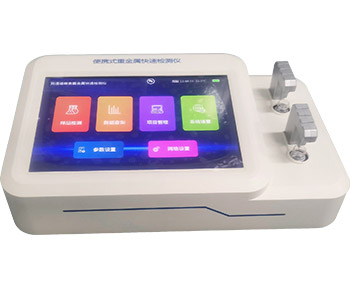

WSK-HMD02 (Double-channel):

Test Mainframe、Tablet PC and Bluetooth Printer integrated as one device.

Product Introduction

Cusabio co-develop this product with Research Institution of Environment and Safety of Wuhan Academy of Agricultural Sciences. It adopts disposable screen-printed electrodes and electrochemical biosensor technique.

Working Principle

Under certain electric potential, make heavy metal ion to test become homojunction metal on the surface of working electrode. Then, process backward voltage to the electrode, to oxidize the homojunction metal on the surface of the electrode. Later, it will generate oxidized electric current. At last, process qualitative or quantitative analyze of heavy metal according to the electric current-voltage curve.

Features

Minimal Training:

  • Easy to use. Operation Demo Video Available.
  • No need of decomposition by strong acid nor heating for sample preparation.
  • With Disposable Screen-printed Electrode, without complex pretreatment like polishing nor maintaining.

User Friendly:

  • Touch Screen on Tablet PC. Equip with Printer.
  • Complete Test Case with all necessary accessories available.

Rapid Test:

  • ≤five minutes for sample preparation;
  • ≤five minutes to finish test.

Application

It is mostly used for testing heavy metal (Pb, Cd) content in rice, brown rice and polished rice.

Detectability

S.N. Test Item Test Sample LOD (mg/kg) Test Range (mg/kg)
1 Pb Rice 0.05 0.05-2
2 Cd Rice 0.03 0.03-2
